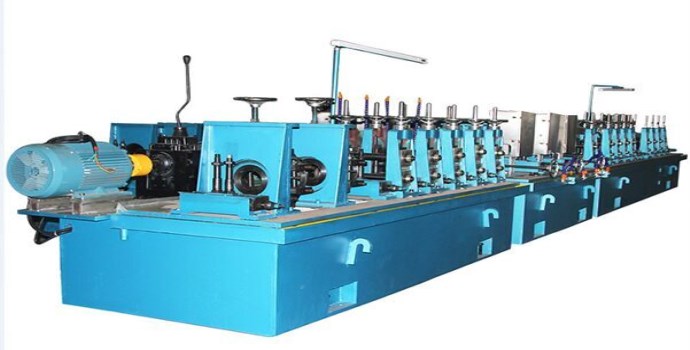

Stainless steel pipe/tube making machine, stainless steel pipe/tube mill
The stainless steel pipe/tube mill is manufacturing stainless steel pipe/tube which used in decoration, metallurgy, construction, transportation, and machinery and vehicle industries. GEIT stainless steel pipe/tube mill adopts long steel strip as the material to manufacture steel pipes according to requested size by cold rolled forming and argon arc welding method. It can produce different types of round, square and rectangle pipes according to customer requirement.
The Main components of Stainless steel pipe/tube making machine
Double station uncoiler

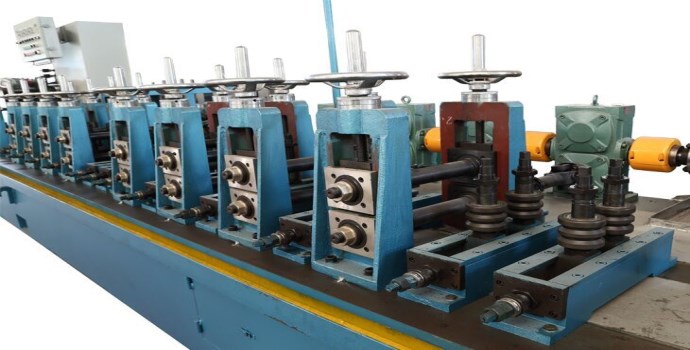

Forming and sizing
Welding section

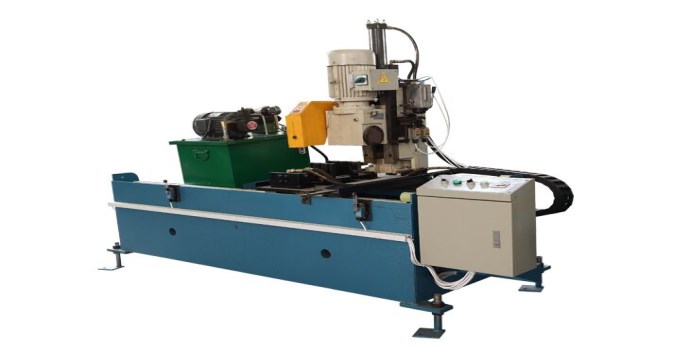

Auto cutter unit
Electric control system
Forming roller
Run-out table
Automatic Production Process
Decoiler--Branding--Forming--Welding--Grinding--Sizing--Straightening--Length fixing--Cutting--Unloading etc
Following is the running machine video :
The stainless steel pipe which made by stainless steel pipe/tube mill can be used in these areas:
Application: Curtain rail, Fence, Chimney, Stair handrail, Furniture, Window sill, Stainless steel door...
Advantages of stainless steel pipe/tube making machine of GEIT group:
1. Fully automatic
2. Easy operation and maintenance
3. Stable mechanical performance
4. Accuracy in end product results
5. Energy saving
6. Fast working speed with proper welding system
7. Minimized work force in operation
8. Much affordable in initial investment
Main Model of stainless steel pipe making machine supplied by GEIT group:
| Model | GEISS30 | GEISS40 | GEISS50 | GEISS60 | GEISS80 | GEISS100 |
| Scope of pipe diameter（mm） | φ6-φ25 | φ12-φ38 | φ25-φ63 | φ38-φ76 | φ60-φ159 | φ129-φ325 |
| Work speed(m/min) | 0.5-6.0 | 0.4-6.0 | 0.4-4.0 | 0.4-4.0 | 0.3-3.0 | 0.3-2.0 |
| Maximum thickness of pipe(mm) | 1.5 | 2.5 | 3.0 | 3.5 | 5.0 | 8.0 |
| Horizontal axis diameter（mm） | φ30 | φ40 | φ50 | φ60 | φ80 | φ120 |
| Vertical axis diameter（mm） | φ20 | φ25 | φ30 | φ40 | φ55 | φ75 |
| Main motor power（kw） | 4×2 | 5.5×2 | 7.5×2 | 11×2 | 15×2 | 22×2 |
| Black solid fusion power（kw） | 80 | 100 | 160 | 200 | 300 | 500 |
| Size of unit （m） | 20.5×0.9 | 22.5×1.1 | 24×1.3 | 25×1.5 | 33×1.9 | 43×2.7 |
